Let's Avishkaar #10: How to make a Bulldozer Bot

Hello Makers!

I am back again with a new Robotics model known as Bulldozer Bot.  Let's make a Bulldozer Bot this time. This is a simple model made from Avishkaar Robotronics FULL kit and based on crane mechanism.

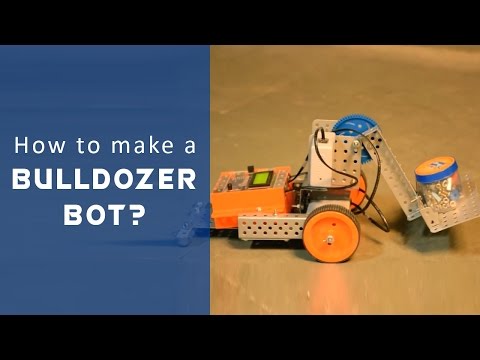

Watched the video? Now lets get to making it! Follow these 12 steps to make your own Bulldozer Bot ! :)


Step : 1

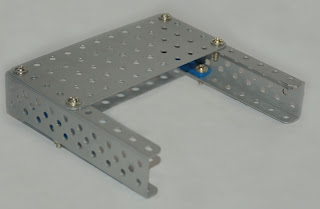

Take 2 short U & a small rectangular plate & connect them at hole no 1 & 5 as in image.


Step : 2

Now add 2 motors on both the short U and fix it by the motor nuts.


Step : 3

Now insert wheels in both the motor's shaft and fix it with an axle lock.


Step : 4

Take one more short rectangular plate, add a flexible strips and add 2 caster wheels with the flexible strip as shown in the image.


Step : 5

Take 2 L-Clip and connect them with nuts & bolts.


Step : 6

Now fix both the assembly of short rectangular plate & of the L-Clip with the base of robot made as shown in the image.


Step : 7

Take 2 L-Clip and 2 square plate & fix them with the help of nuts & bolts as shown in the image.


Step : 8

Add a motor to the square plate of the same assembly.


Step : 9

Now fix it with the base of the robot as shown in the image.


Step : 10

Make a arm with the help of a Short rectangular plate, 2 Short L & a Big round gear as shown below.


Step : 11

Attach that arm with the motor on the top of the robot.


Step : 12

Install a CP Full Brain with the Robot and your Bulldozer is ready to run.


In case you face any challenge while making this model, you can send in your query to us at [email protected] I  would love to see how well you made this model. Share the pics with me at [email protected] or on our Facebook page here.


Stay tuned for more such tutorials! :)

Akshay Kumar
Robotics Expert

Team Avishkaar Box
